Turbo 400 Dump Valve and pressure Regulator System

$1,235.00 inc. GST

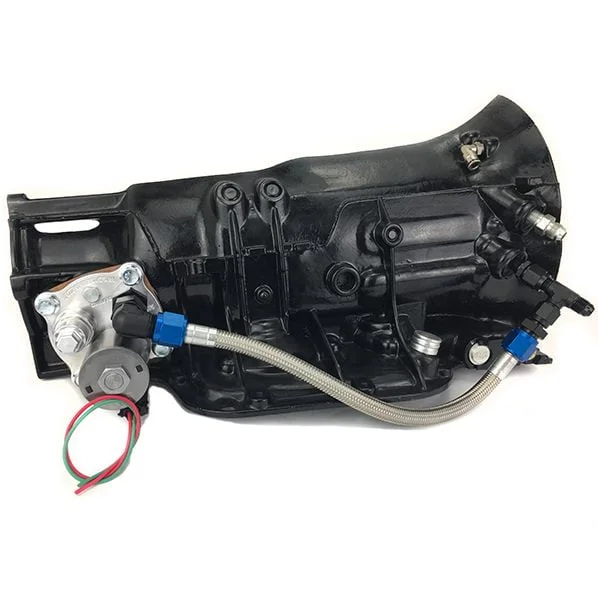

Our new and improved TH400 Converter Dump with built in Regulator Valve. The solenoid can now be pulse width modulated for more precise tuning and accuracy. The built in regulator prevents torque converter charge pressure from going too high which reduces the chance of having thrust main bearing failures in the engine. This can be used as a full dump when on the trans-brake and then pulsed width modulated after the trans-brake is released allowing you to control converter charge pressure during the run. To control the charge pressure during the run program the controller so that 0° pwm will give you maximum pressure and 100° will give you the lowest pressure.

This is the new designed valve, with one on-board pressure port for monitoring converter charge pressure.

***The ATI TH-400 case doesn’t have the factory governor boss therefore this kit will not work. The case will have to be tapped for a fitting just like the Powerglide does. So we recommend using the Powerglide kit instead.

This kit includes –
• Billet aluminum governor cover with Built in Regulator Valve
• 12″ pre-made -8an hose
• Governor Gasket
• Solenoid Harness
• One Straight Swivel Fitting
• One T fitting
• One 90° Swivel fitting
• One -8 to -6 Adapter Fitting

9 in stock
